Kirim Pesan Interaktif Daftar Tombol

POST
/nusasms_api/1.0/wa_business/interactive/button_list
Syarat Penggunaan

Untuk mengirim tipe pesan ini (seperti tipe reply / balasan), harus sudah ada Conversation room (percakapan) antara akun Whatsapp (Gateway) dengan si penerima pesan.

Komponen Template:

  • header: Header title text
    optional
    max 60 characters
  • body: Message text body
    required
    max 4069 characters_
  • footer: Foot note message
    optional
    max 60 characters
  • action: The button list, that can be grouped into sections,
    action consist of max 10 sections, with 10 rows for all section combined

button_id​

button_id is a identifier of the buttons. Every button's button_id should be unique.

This useful when use subscribe Push Inbox (webhook / callback), which the selected button_id will be shown on the webhook call request data.

Example
{
  "gateway_id": "YOUR_GATEWAY_ID",
  "recipient": "RECIPIENT_NUMBER",
  "header": { "text": "Header Title" },
  "body": {
    "text": "Text body here. This section is required (max 4096 chars)"
  },
  "footer": { "text": "Footer text" },
  "action": {
    "text": "Button List Title",
    "sections": [
      {
        "title": "First Section",
        "rows": [
          {
            "button_id": "btn_id_1",
            "title": "First item",
            "description": "This section item description"
          },
          {
            "button_id": "btn_id_2",
            "title": "Second item",
            "description": "This description is optional"
          }
        ]
      },
      {
        "title": "Second Section",
        "rows": [
          {
            "button_id": "btn_id_3",
            "title": "First item"
          }
        ]
      }
    ]
  }
}

Preview​

Here is the preview when you got this type of message.

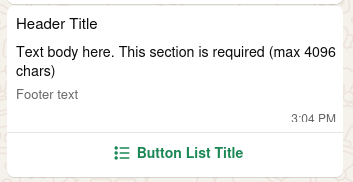

Received Message​

Message preview

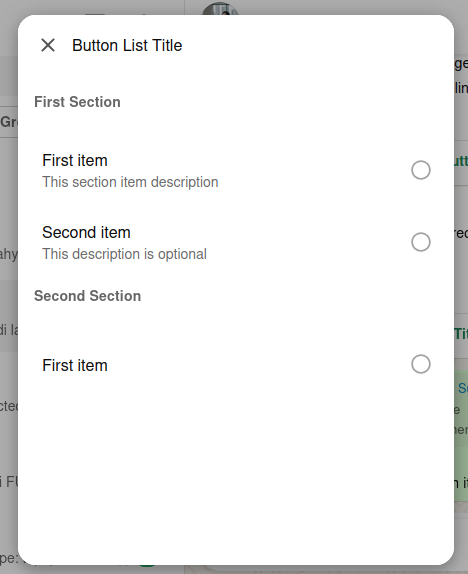

Show List​

Expanded list

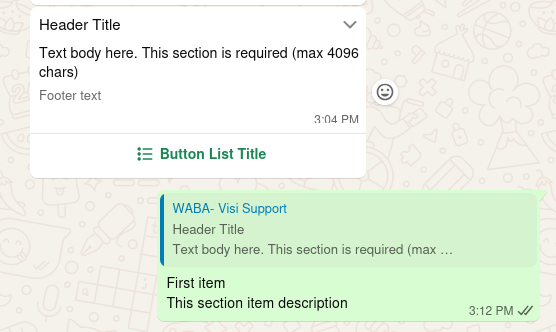

Click or Touch a Choice​

After click / touch

Request​

Responses​

Successful Response
