Send Interactive Button Reply

POST
/nusasms_api/1.0/wa_business/interactive/button_reply

Requirement

To send this type of (just like Reply) message, you must first establish a Conversation room with the recipient. In other word, your recipient must sent a message to your gateway.

Introduction

Interactive Button Reply message allow you to send up to three predefined replies for users to choose from.

Json Request Components

• header: Available types: text, document, image, and video
  optional
  Example:


  • text: {"type": "text", "text": "Your Text Header"}
  • document: {"type": "document", "link": "YOUR_DOC_URL", "filename": "document.pdf"}
  • image: {"type": "image", "link": "IMAGE_URL"}
  • video: {"type": "video", "link": "VIDEO_URL"}

  Media extensions


  • document: pdf, doc, docs, ppt, pptx, txt, xls and xlsx
  • image: jpeg and png
  • video: 3gp and mp4

• body: Message text body
  required, max 1024 characters

• footer: Foot note message
  optional, max 60 characters

• buttons: Reply buttons
  max 3 items


  • button_id: the button identifier. Must be unique.
    max 256 characters
  • title: Button label text.
    max 20 characters

{
  "gateway_id": "YOUR_GATEWAY_ID",
  "recipient": "RECIPIENT_NUMBER",
  "header": {
    "type": "image",
    "link": "https://api-doc.nusasms.com/slate/img/logo.png"
  },
  "body": {
    "text": "This is the main text.\nMake it sounds cool\n😁"
  },
  "footer": {
    "text": "A little note on the footer"
  },
  "buttons": [
    {
      "button_id": "BTN ID 1",
      "title": "This is"
    },
    {
      "button_id": "BTN ID 2",
      "title": "some"
    },
    {
      "button_id": "BTN ID 3",
      "title": "cool buttons"
    }
  ]
}

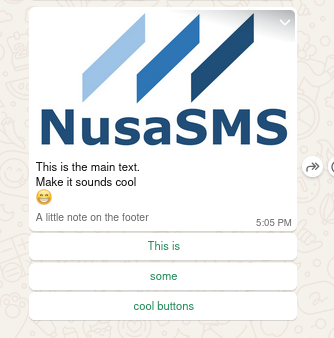

Preview

Here is the preview when you got this type of message.

Received Message

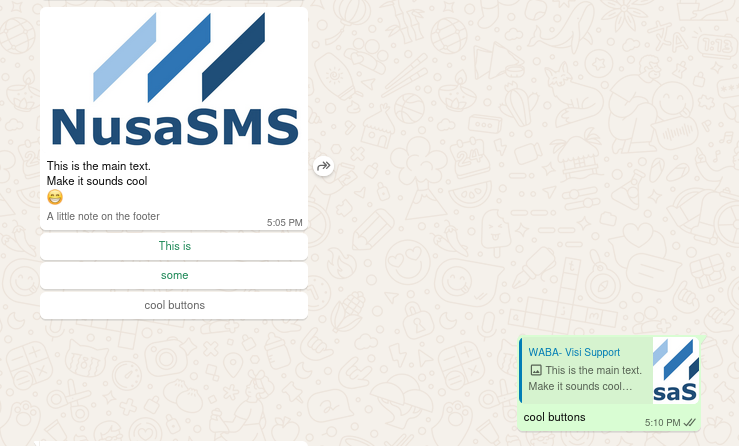

Send Reply on Click / Touch

Request

Responses

200

Successful Response

400

Request validation error

403

Forbidden access

422

Validation Error
